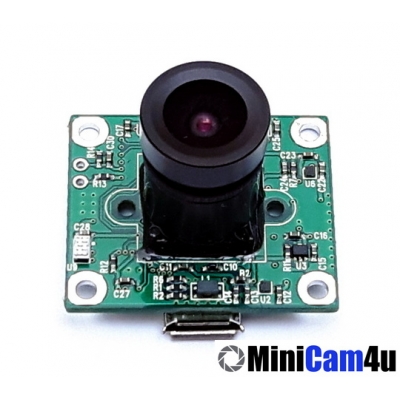

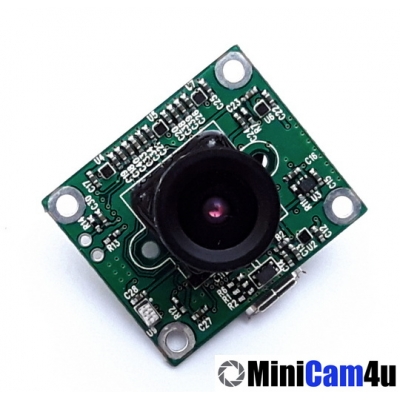

CM-1X26U 5MP FHD OTG UVC Micro USB Camera module

CM-1X26U 5MP FHD OTG UVC Micro USB 2.0 QSXGA CMOS Camera module

Feature
5.0 MegaPixel USB QSXGA  50% more pixels than FULL HD
High Sensitivity!
High Performance.
Full HD image pixel

Specification:

1/4" Color QSXGA 5MP Camera module
Image Area: QSXGA 2592 x 1944, 1.4um

Frame Rate:
Full 5.0M 2592 x 1944 /15 fps
FHD 1920 x 1080 /30 fps
HD 1280 x 720 /60 fps
VGA 640 x 480 /60 fps

Lens:  3.0mm/F2.0(M10xP0.5)          35mm ekvivalent FOV = 32mm
Image sensor:   1/4" CCIQ III digital QSXGA CMOS camera module

Fixed focus that can be adjusted by lens screw. Lock ring fixes it in position.
Large depth of field (specific for such small sensors) insures sharp focus accross the frame for most moderate focus settings.

pixel size: 1.4um x 1.4um
Output Format: Raw YUV MJPG Data

Scan mode: progressive
Sensitivity: 5100 e-/lux.sec
Dynamic range: 63 dB
White balance AUTO
Gain control AUTO
Exposure AUTO
Connector: Micro USB 2.0
Input: DC 5V (USB)/ 170mA(working)
Power current 1:170mA; Isb:50mA
Dimension(mm): 22 x 26 x 25.6
Cable length(cm): 200(accessory)

- Driver free Mac OS; Windows XP, Windows 7, Windows 8, (When using Win7, need to install MJPG decoders) ,after UVC convey to computer, file can compress in MJPEG

Download MPJG Codec

- Works on Andorid phones only with OnTheGo option, comes with OTG USB cable, but do not supporting Skype or Viber

Tested Android Free Apps :

https://play.google.com/store/apps/details?id=com.vaultmicro.camerafi

https://play.google.com/store/apps/details?id=com.vaultmicro.camerafi.live

https://play.google.com/store/apps/details?id=com.serenegiant.usbwebcamera

https://play.google.com/store/apps/details?id=com.serenegiant.uvcstreamer

Specification in PDF

1 Year warranty – Original made in Taiwan
